Fiat 600

Fiat 600Introduced at the Geneva Motorshow of 1955, the new Fiat 600 was part of the postwar Italian 'Economic Miracle' and helped mobilise the country, being produced in large numbers (for its time).

As released, the 600 was a two (suicide) door four seat car with a 633cc (21.5bhp) water cooled four cylinder engine located behind the rear seats and driving the rear wheels. It was the first rear-engined Fiat production car. Other notable features were the monocoque construction and the independent suspension on all four wheels.

One year after the introduction of the saloon, two more versions were introduced. Following with tradition, a version was released with a full length opening canvas roof. And then there was possibly the first true MPV, the Multipla. This had three rows of seats for a Fiat 600 Multipla total of six people, the two rear rows of seats which could be folded into the floor, leaving a large flat loading area. The front suspension was derived from the 1100 whilst due to the increased weight the brakes, rear suspension and steering were all uprated. It was produced in three versions, a 4/5 seater, a full 6 seater and a taxi.

In 1960 the 600 range got its mid-life update when the 600D was released. Mechanically this got an increased capacity engine of 767cc (29bhp) whilst various changes were made to the bodywork (most noticeably, the front windows got openable quarterlights and the bootlid got modified cooling grilles). The Multipla adopted the same changes.

In 1964 further improvements saw the introduction of front hinged doors. In 1965, after over 2,000,000 cars had been built, another revision of the 600D, saw new headlights, a larger fuel tank, a new badge on the frille and replacement of the oil filter element with a centrifugal unit. Visually these cars had the chrome strip on the side deleted.

A total of 2,695,197 Fiat 600s were built in all versions.


For various 600 based cars made by other Italian manufacturers see the 'Other Marques' page (including the 'Lucciola' four door saloon by Francis Lombardi, cars by Moretti, Ghia and many more).


Fiat 600
Fiat 600

Technical Details

Driveline longitudinal engine at rear with rear wheel drive
Engine 633cc (60x56mm) four cylinder in-line ohv with 22bhp @ 4,600rpm
767cc (62x63.5mm) four cylinder in-line ohv with 29bhp @ 4,800rpm
Suspension front : Independent, single upper wishbone with telescopic damper and single transverse leaf spring
front : (Multipla) double wishbone with coil spring and telescopic damper plus anti-roll bar.
rear :  independent with telescopic dampers and coil springs
wheelbase : 2000mm
front track : 1144mm (saloon), 1225mm (Multipla)
rear track : 1154mm (saloon), 1151mm (Multipla)
Brakes front : drums, diameter : 185mm (saloon) & 220mm (Multipla)
rear : drums, diameters as front
handbrake operating on the rear via a cable
On early cars the handbrake operated on a drum on the end of the gearbox layshaft
Gearbox 4 speed manual
cable operated clutch
clutch plate diameter 155mm
Steering Helical worm and sector (early saloons), worm and roller (600D and Multipla)
Dimensions saloon, Multipla.
Kerb weight 600 : 585kg
600D : 605kg

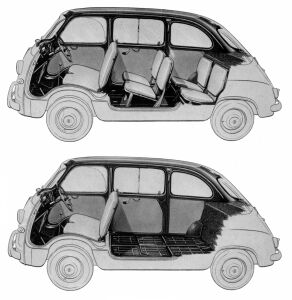

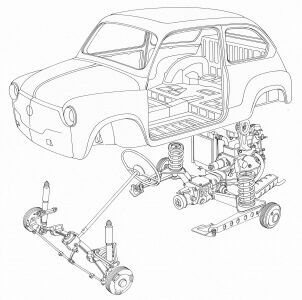

Fiat 600 exploded view Fiat 600 Multipla seating arangements

Back to the top



Maintenance

Fiat 600D The following data refers to the 1973 600 & 600D models :

Scheduled maintenance :

Replace air filter : every 10 000km
Check tappet clearances : every 10 000km
Oil & filter change : every 10 000km or 12 months

recommended engine oil : for climates below -15C SAE 10W, for those below 0C SAE 20, for those above 0C SAE 30 and for those above 30C SAE40.
recommended transmission oil : SAE 90EP

engine oil capacity (sump & filter) : 3.0 litres
transmission oil capacity : 1.55 litres

Spark plugs : Champion L7, gap 0.6mm to 0.7mm

Back to the top


Fiat 600 dimensions - click for larger image Fiat 600 Multipla dimensions - click for larger image Fiat 600 braking system - click for larger image Fiat 600 lubrification system - click for larger image

For books on the Fiat 600 see our Online Bookstore

There is also a list of all our picture galleries (including museums, motorshows and various events).

Wallpapers/Desktop Backgrounds of numerous Fiats also available to download.


Links

A Fiat 600 website

A page dedicated to a 1963 Allemano 600

Back to the top


600 comment form

Fiat 600R as built in Argentina (derived from 600D with 797cc engine)Please send your comments on the 600, these will be added to this page for future visitors to read.
Please include your name (or a nickname) and your country. Thanks.



Your Comments

Fiat 600D Oh my goodness, it's the cutest car I've ever seen and I must say it is love at first sight...! I've never even felt this way about the opposite sex and everyone thinks I'm nuts to buy and restore the car. Give me 2 years and I'll make them swallow their words..... (Pamela, Malaysia)

I fell for this car when I was like around 7 years old and it has always been my dream to own one.I paid 900 bucks and my dream came true,quite a bad one but hey,I'm a mechanic so no problem with the mechanical bits. Currently it is undergoing some body repairs but I'll be driving it around soon although it needs a facelift but who cares!BY 2943 is its reg. no.,so if you see it around give me a peace sign, alright? (Benjamin T, Malaysia)

I've owned several of these little beauties. My favourite one was a 1958 model with Fiat 850 engine modification (bored out to nearly 1000cc!). It was a wolf in sheeps clothing. It looked innocent enough, but when the traffic light turned green... (Nick, Australia)
