The
long awaited replacement for the Bravo/Brava,
the new 'Stilo' as it has officially been named (internally, project 192),
was released officially at the Geneva Motorshow in March 2001.

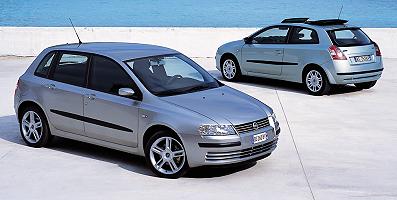

Following on from the Bravo/Brava pair, Fiat are
stressing the different characters of the three and five door versions
of the new car. This time, however, there is only the one name for both
models. The heritage of the Bravo can be seen in the design of the three
door car, whilst the five door model retains more styling cues from the
three door version than was the case with the Brava.

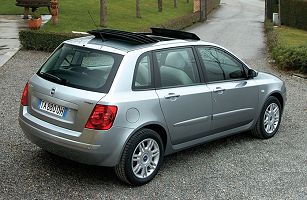

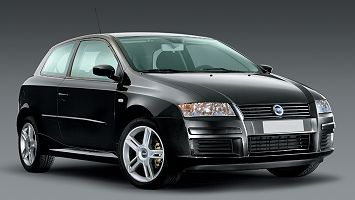

The three door car has a slightly shorter body, a
much lower roofline, and the driving position is lower, whilst the five
door car is The engines comprise 4 petrol units and two diesels.
The former start with a 16V 1.2-litre unit (coupled to a six-speed gearbox)
include 1.6 and 1.8-litre 4 cylinder 16V units and conclude with the 2.4-litre
5 cylinder unit (fitted with the Selespeed transmission) with 170bhp in
the Abarth version. The diesels are both 1.9 JTD units, one with 80bhp
and the other with an extra 35bhp thanks to a variable geometry turbocharger
and an intercooler.
The suspension is a conventional MacPherson strut setup at the front and a
modified torsion beam system at the back. Disc brakes are standard all

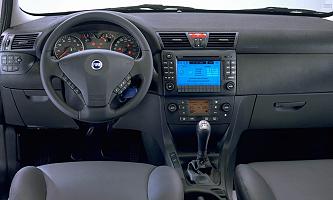

The interior is aimed to offer class leading levels
of equipment and includes fully adjustable seats and steering wheel, customiseable

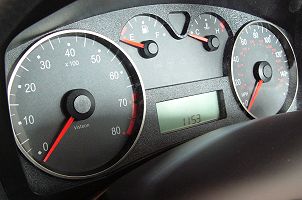

central-locking, various displays, trip computer, six-speaker sound system
(with more available as an option), electrically heated and adjustable
door mirrors, adjustable head restraints and various other 'goodies'. An
automatic dual-zone climate control system with an air quality sensor (controlling
recirculation) is optional as are electrically adjustable seats (with a
memory), cruise control (standard on the Abarth), improved sound systems,
CONNECT integrated communications and navigation system, steering wheel
Occupant safety has been concentrated on, both in the design of the structure and in
the provision of six airbags as standard (two front, two side and two window bags with two sidebags in the rear optional), height adjustable front seatblets with pretensioners,
adjustable head restraints, side intrusion bars, fire protection system and more.
Other novel features include the now established
'follow-me-home' headlights (first seen on the Punto) and the new 'puddle-lights'
which illuminate the ground beneath the front doors when the doors are opened ! The Paris Motorshow of 2002 saw the release of the

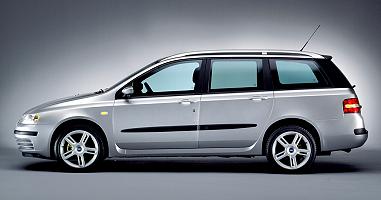

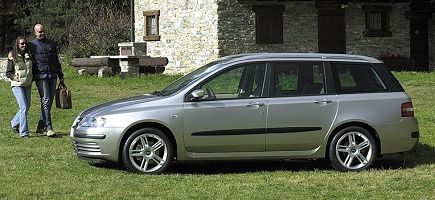

Stilo MultiWagon.
The estate version of the range it retains the same wheelbase, but is longer and taller than both the 3 and 5 door versions. As well as the cavernous loadbay,
the interior is designed to be flexible and has many seating combinations. Some can be seen
here.
A revised rear suspension ensures minimum intrusion giving a wide, low area, whilst touches like the separately opening rear window make life with
the car much easier.

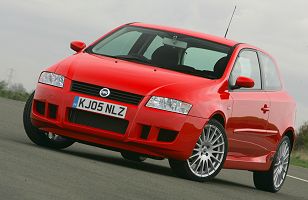

Various special editions were built, most famously the 'Stilo Schumacher'. This originally was a 2.4-litre 3-door only available in a special colour, Ferrari red, but
various markets used various engines and indeed in some countries also five-door variants were produced (and other colours !).
Click here for pictures
of a variety of interior details. Click here for a video of the Stilo crash test, and
here for a TV advert for the Stilo featuring Michael Schumacher.

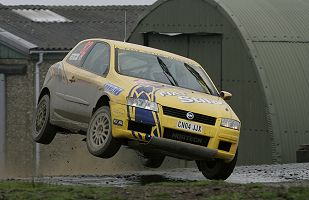

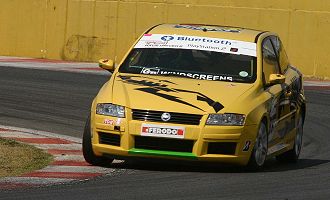

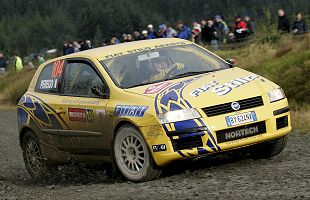

There is also a competition version, built for a single make rally championship, the Stilo Abarth Rally. There are
more details here.
CarsfromItaly was at the Geneva Motorshow, see our Fiat page for pictures of the launch of the Fiat Stilo.
slightly
longer, has a much higher roofline and has a raised drivers seating position.

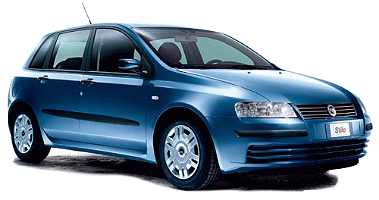

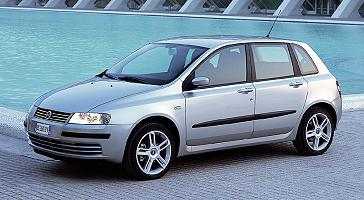

The latter model is described by the official press release as being a
traditional car with the benefits of a monovolume added, with ease of entry,
excellent interior space and raised driving position being quoted. The
rear seat is also adjustable in two parts. The three door car is claimed
to empahsise driving pleasure, individualism and performance, whilst the
five door concentrates on on-board comfort, interior space (and the implied
safety), versitility and a competitive price. The range comprises three
trim levels (Active, Dynamic and Abarth), the two bodystyles, six engines
(see below) and seventeen different colours.
round on all models, and include Bosch ABS as well as EBD (Electronic Brakeforce
Distribution), ASR (Anti Slip Regulation), MSR (MotorSchleppmomentRegelung)
and a brake assist system. An ESP (Electronic Stability Program) system
is standard on some models. The steering is assisted electrically, proportional
to the speed, and includes two levels of assistance, selectable by the
driver. One is aimed for normal driving, the other (with more assistance)
for town driving and parking. Above 70km/h the two systems coincide.
controls, rain sensor, automatic headlights, parking sensor, radar cruise
control, remote control central locking, completely keyless entry and start
system, segmented glass sunroof and more.
2004 saw a mild revision to the range with various content, trim, material and colour changes. Significant design changes concerned only the rear of the 5-door, which was
noticeably improved by the redesign of the light clusters. Mechanically, a new 1.4 16v engine with 95bhp replaced the 1.2 16v unit, whilst the 2.4 Abarth
became available with a manual transmission as well as the Selespeed as offered before. Around this time the new MultiJet diesel units became available, with various
variants of the 1900 turbodiesel being introdued, from 100 to 150bhp, the latter also with 16 valves. In South America the Stilo also used a different 1.8-litre engine,
a sohc 8v unit with a capacity of 1796cc and a power output of 105bhp.
CarsfromItaly was at the Frankfurt Motorshow, see our Fiat page for more pictures of the Stilo.
CarsfromItaly was at the Paris Motorshow, see our Stilo MultiWagon page for pictures of the launch of that version.
Screensavers of the Fiat Stilo available to download (free).
 |
 |
Technical Details
| Driveline | transverse engine at front with front wheel drive |
| Engines | 1242cc (70.8x78.9mm) dohc 16V 4-cyl with 80bhp @ 5,000rpm
1368cc (72x84mm) 16v 4 cylinder dohc with 95bhp @ 5,800rpm 1596cc (80.5x78.4mm) dohc 16V 4-cyl with 103bhp @ 5,750rpm 1598cc (80.5x78.4mm) dohc 16V 4-cyl with 103bhp @ 5,750rpm 1747cc (82x82.7mm) dohc 16V 4-cyl with 133bhp @ 6,400rpm 2446cc (83x90.4mm) dohc 20V 5-cyl with 170bhp @ 6,000rpm (picture) 1910cc (82x90.4mm) sohc 4-cyl turbo diesel with 80bhp @ 4,000rpm 1910cc (82x90.4mm) sohc 4-cyl turbo diesel with 115bhp @ 4,000rpm 1910cc (82x90.4mm) sohc 4-cyl turbo diesel (MultiJet) with 100bhp @ 4,000rpm 1910cc (82x90.4mm) sohc 4-cyl turbo diesel (MultiJet) with 120bhp @ 4,000rpm 1910cc (82x90.4mm) dohc 4-cyl 16v turbo diesel (MultiJet) with 150bhp @ 4,000rpm |
| Suspension | front
: MacPherson strut with telescopic dampers and coil springs plus anti-roll bar
rear : torsion beam axle with telescopic dampers and coil springs wheelbase : 2600mm track (front/rear) : 1514mm/1508mm all except Abarth : 1518mm/1512mm |
| Brakes | front : ventilated discs, diameter 257mm (1.2 & 1.6), 284mm (1.8 & diesels), 281mm (Abarth)
rear : discs, diameter 251mm (all) handbrake operating on the rear via a cable ABS, EBD, ASR, MSR plus ESP on some models |
| Gearbox | 5 or 6 speed manual
Selespeed hydraulically operated clutchless system on Abarth dual cable gearshift mechanism and hydraulic clutch on all variants (except Abarth) |
| Steering | Rack and pinion
electrical power assistance |
| Kerb Weight | range from 1090kg (3 door 1.2) to 1320kg (5 door 1.9 JTD)
3dr Abarth : 1265kg 5dr 1.8 : 1295kg |
Click here for a cutaway of the 3-door Stilo.
Click here for a cutaway of the 5-door Stilo.
