Occasionally the name has been revived
for a concept car or prototype, but as yet no production has resulted.
With
a background at Ferrari, Alfa Romeo and Iso (plus his first car which was
a sport coupe based on a second-hand Fiat 500B in 1949), Giotto Bizzarrini
was a talented and experienced engineer. In the early 1960's he decided
to design and build his own car, at Livorno. The A3C GT Strada emerged
in 1963, entering production in 1965. Later cars were badged Bizzarrini
Grifo and later (most of them) 5300 GT. A smaller version was presented
in 1966, powered by a 1481cc Fiat four cylinder engine (around 5 built)

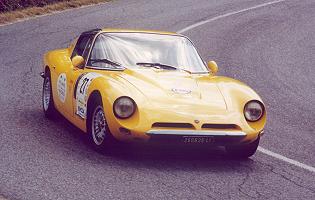

followed by the 'Europa', the same car powered by a 1897cc Opel unit (around
15 built). By 1969 Bizzarrini has succumbed to that Italian Motor Industry devil, financial problems.

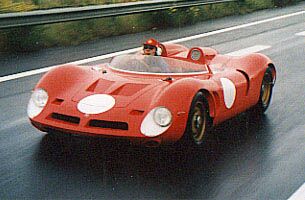

P538
This was a rear-engined competition car which first appeared in
the 1966. The powerplant was a 4000cc Lamborghini V12 (450bhp @ 10,000rpm) coupled to a ZF 5-speed 'box.
The glass-fibre body was bonded to the steel chassis whilst independent suspension was used all round as were disc brakes
(those at the rear inboard). The fuel tanks were located in the sills.
A3C / 5300 GT Strada

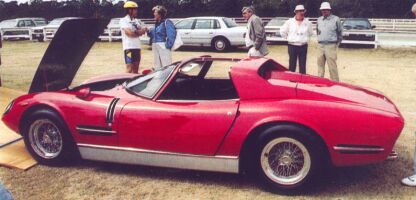

In 1966 a spider variant was seen. Technical Details
Click
here for the Bizzarrini Manta prototype from 1968
Click
here for the Iso Rivolta / Bizzarrini GT Varedo prototype from 1972

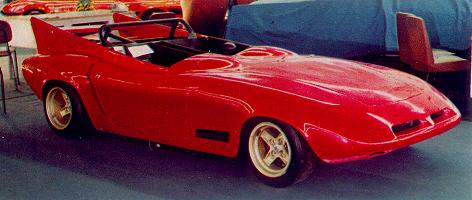

This was a two-seat racecar designed by the son of the famous engineer Bizzarrini. Shown
at the Turin Motorshow in 1972 it was fitted with a 1300 engine derived from the Fiat 128 unit (with 135bhp @ 8,000rpm).
A five-speed Colotti gearbox and glassfibre bodywork were also featured. The chassis was modified from that of the 1900GT
Europa. A top speed of 220km/h was claimed.
This was a concept car which appeared in
the 1990's. It was based on the Ferrari Testarossa, including the latters
flat-12 engine. Only one example was built and nothing more came of the project.

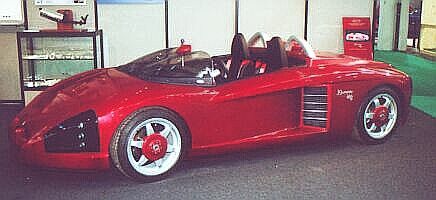

Bebi
At the 2000 Turin Motorshow the Bizzarrini
stand was showing a prototype of a new model. The Bebi is an ultalightweight
(390kg) motorbike powered (175bhp) two seater. The chassis is a tubular
frame whilst the engine is positioned at the rear, as can be seen in the photo below.
Links
An excellent Bizzarrini website.
Your Comments
If you have one of these rare cars, please send us your comments....
See our picture gallery index for images from museums, motorshows and events.
Copyright © 2000 to 2008 CarsfromItaly
The wheelbase was 2500mm, the tracks (front/rear) were 1481mm/1486mm, the overall height was a mere
970mm and the weight 700kg.

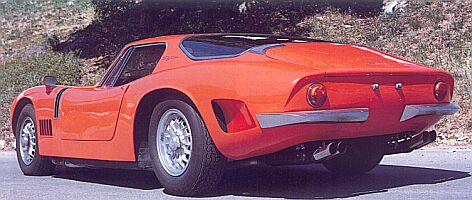

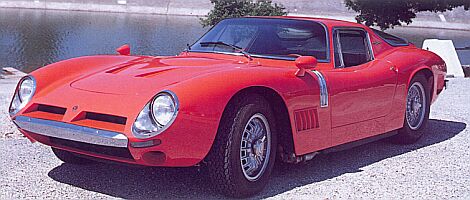

The Grifo A3, later known as the 5300 GT Strada, was released at the 1963 Turin
Motorshow and borrowed heavily from Bizzarini's
then most recent creation, the Iso Grifo. A similar suspension layout,
including de Dion rear setup, was accompanied by a similar (albeit more
highly tuned) 5358cc Chevrolet V8 pushrod engine, now producing 365bhp.
This drove through a strengthened four speed manual gearbox and a limited-slip differential, whilst four
disc brakes provided the retardation. The steel platform chassis was clothed
in an alloy body, designed by Bertone. Accomodation for two was provided in the cockpit,
as was a small luggage compartment. Production ran from 1964 to 1968,
with a total of 133 examples being produced.
Engine
5358cc (101.6x82.5mm) V8 with 365bhp @ 5,800rpm
Suspension
front : independent with anti-roll bar
rear : de Dion with anti-roll bar
wheelbase : 2450mm
track (front/rear) : 1420mm/1430mm
Brakes
discs all round with servo assistance
Transmission
4 speed manual
Steering
recirculating ball
Kerb weight
1200kg
Performance
0-100km/h : 6.7sec
100-0km/h : 57m
max speed : 260km/h
standing km : 25.9sec
1300 Barchetta

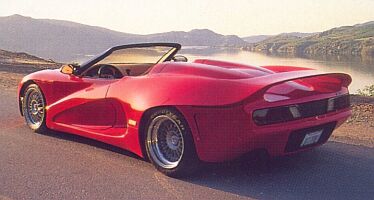

2001
