There was a delay before the next car arrived,
and when it did it was a very different beast. The Rivolta was a two door,
four seat rear-wheel drive saloon, powered by a 5359cc Chevrolet V8 ohv
engine. This set the trend for future Iso's, with a chassis design by Bizzarrini,
bodywork design by Bertone and the big Chevrolet engine.
Shortly afterwards the Grifo emerged from
Iso's Milan factory. This used a similar engine and chassis to the Rivolta
in a new two seat coupe body. The Fidia, which was introduced in 1967,
was a four door, four seat saloon, still based on a similar combination
of chassis and engine. The last production car from Iso was the Lele, a
2+2 coupe replacement for the Rivolta, still with basically the same engine and chassis.
In 1966 Renzo Rivolta, the man behind the
company, passed away and his son Piero took control. The company made
an ill-judged move into Formula One with Frank Williams and at about the
same time the oil crisis hit. The combination of these events saw the closure of Iso in 1975.
Before
the second world war, Renzo Rivolta had built up a succssful company, Isothermos,
building refrigerators. The 1940s saw him turn his hand to scooters, keeping
the well known Iso name. From this they progressed to the Isetta, a 236cc
bike engine powered bubble car. This was built from 1953 to 55 (although
licence production in other countries continued until 1964).

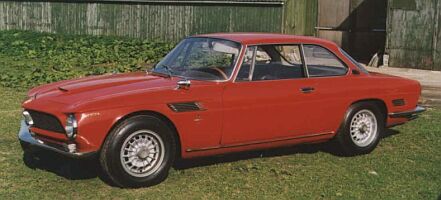

Rivolta
A separate boxed steel platform chassis frame was used, fitted with wishbones at the front
and a de Dion layout at the back. Coil springs, hydraulic dampers and disc brakes (inboard at the rear) were to
be found an all corners. The wheelbase was 2700mm whilst both the front and rear tracks were 1410mm and the empty weight was
1520kg.
It was available in white, grey (m), green (m), two blues, gold (m) and two reds (one m), those with (m) indicating metallic.
The latter was an extra cost option, as were a leather interior, an electric sunroof, wirespoke wheels, wooden steering wheel (by
Nardi) and air conditioning. Electric windows were standard.
Introduced at the Turin Motorshow in 1962, the Rivolta was one of the early examples
of Detroit meets Italy, with a front mounted Chevrolet 5358cc (101.6x82.55mm) ohv V8 driving
the rear wheels through either an automatic transmission (also from Chevrolet)
or a four speed manual from ZF and a bodywork designed and built by Bertone.
The actual designer was Giugiaro whilst he was working for the latter company.
Two versions, the IR300 and IR340, were
built, the 300 and 340 referring to the power output of the engine, although various options were available, including a 365bhp
version using an engine tuned in Italy and even a a four carburettor setup with 400bhp. A five speed transmission also became
available during the cars production life. A total of 797 examples were built up until 1970 when production stopped.

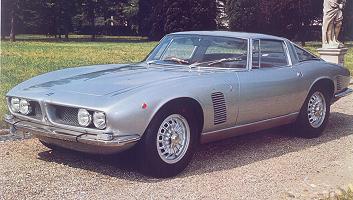

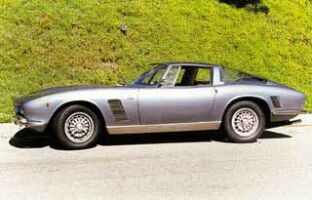

Grifo
Based
heavily on the Rivolta, the Grifo was introduced in 1963 (click here
to see the prototype) as the A3L. It used a slightly
shorter wheelbase fitted with the same suspension, brakes, engines and
transmissions, but clothed in an all new two door coupe body. The design
was again by Bertone, but much more distinctive.

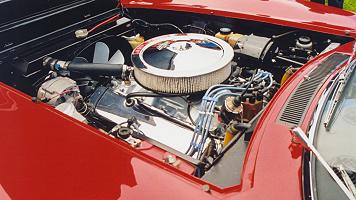

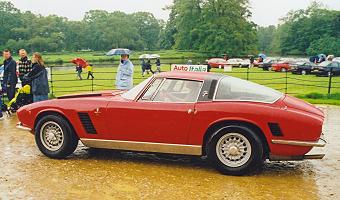

Over the years the Grifo was fitted with
ever larger and more powerful versions of the Chevrolet engine, the ultimate
'Can Am' version using a 7.5 unit with nearly 400bhp (24 were built). A mild
cosmetic facelift was also carried out in 1971 when the front became much
lower (and supposedly more aerodynamic), and incorporated pop-up lights.
Apart from the remodelled front, the only significant body variant was
the targa version, of which only 17 were built. A
Spider version was shown by Bertone at the 1964 Geneva Motorshow,
but nothing came of the project. The last 37 cars used a
5.8-litre Ford engine.
Production continued until 1975 by which
year Iso had built a total of 412 Grifo's.
To summarise, the engines used were :
The wheelbase remained constant at 2500mm, front and rear tracks at 1410mm. Braking was by discs all round, whilst the suspension employed
an independent front setup and a de Dion layout at the back.
5359cc (101.6x82.55mm) V8 with 300bhp @ 5,000rpm (later 350bhp @ 5,800rpm)
6998cc (107.95x95.5mm) V8 with 400bhp @ 5,200rpm
7443cc (107.95x101.6mm) V8 with 395bhp @ 4,800rpm (Can Am)
5733cc (101.6x88.39mm) V8 with 304bhp @ 4,800rpm (IR8)
 |
 |

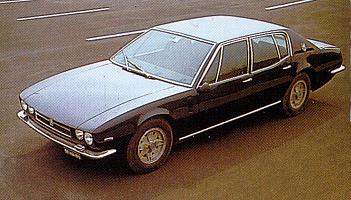

Fidia
Around one quarter of the 192 cars produced
were fitted with a Ford 5.8 litre V8 instead of the Chevrolet unit. Production ceased in 1975.
The
next model to use the same chassis and mechanicals was the Fidia, introduced
in 1967. This time the chassis was stretched slightly, and a four door
saloon body designed by Ghia was added. The spacious interior was well
equipped with such things as air conditioning etc.

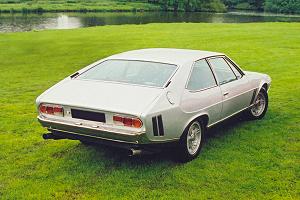

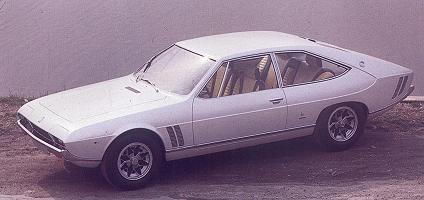

Lele
The
last version of the Rivolta chassis and mechanicals was the Lele, which,
when introduced in 1969, replaced the former car. The wheelbase remained
the same for this model, the most significant change being a new body by
Bertone. This was a two door 2+2 coupe offering reduced internal space
compared to the four seat Rivolta.
Production continued until Iso closed in
1975. The first 125 cars used the Chevrolet engine, the remainder of the
approximately 300 cars built having the Ford unit.
 |
 |
Click here for the Iso Rivolta / Bizzarrini GT Varedo from 1972
Click here for the Iso Grfio 90 from 1991
Links
A very good Iso website
Another Iso website
The Swiss Iso & Bizzarrini Club website (in German)
Piero Rivolta has moved on, on his website you can see what he is now doing (plus a few pictures of the cars).
