That engine was a quad
cam V6 of 1987cc producing 160bhp.

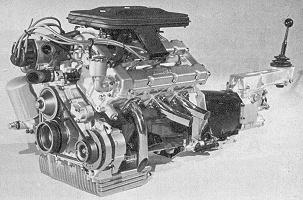

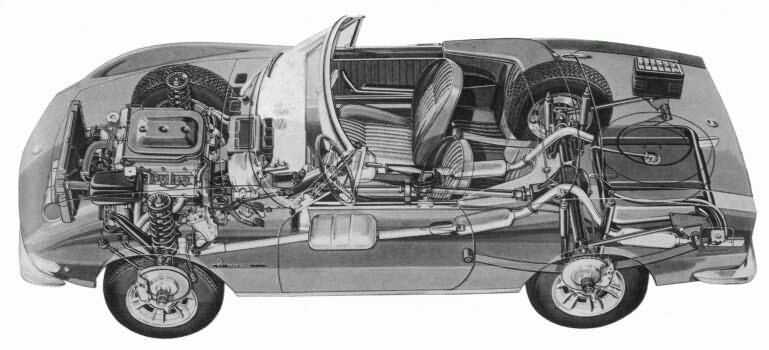

The first quad cam engine in a production Fiat, it was all alloy with a four bearing crank and semi-wet cylinder liners. Each cylinder featured two
valves and one spark plug, but used a narrower than normal valve angle (46deg). Drive to all four camshafts was by duplex chain. Fuelling was by
three Weber twin 40DCNF carburettors.
Drive was through a five speed gearbox (actually a four speed box with reverse and fifth-gear in a separate casting added on), two-piece
propshaft and a limited slip differential in the live rear axle. A relatively simple leaf spring and live axle rear suspension
was used, whilst the front suspension used a conventional double wishbone layout.
Braking was by ventilated discs on all wheels, using Girling callipers (made under licence by Fiat).

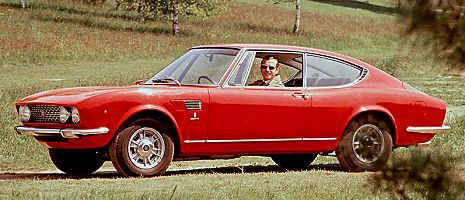

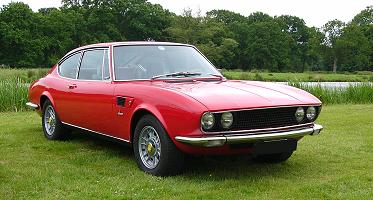

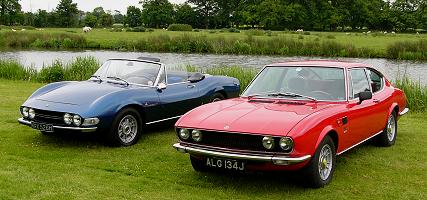

In the following year, this time at the Geneva Motorshow, the Dino Coupe was introduced, a two door coupe designed
and produced by Bertone. This used the same drivetrain as the Spider, but with a longer wheelbase. The rear suspension was also slightly modified (twin-leaf springs and different dampers)
which resulted in improved handling. Internally it got four full bucket seats and electric windows and a different dashboard to the Spider.
It is also worth noting that Pininfarina also built
two prototypes based on the Spider, one with a conventional add-on hardtop and one with a fixed roof.
Up front was an all new engine, now featuring a cast iron block (rather than the alloy block of the 1987cc version), displacing 2418cc and producing 180bhp. In order to
make the car more usable, peak torque was significantly improved, and produced at 4,600rpm instead of the 2-litre's 6,000rpm. The rest of
the engine layout (quad-cam, duplex chain drive, 65deg angle, three twin Weber carbs) remained essentially unchanged. A new ZF (still five speed) gearbox was also
used. Significantly, following criticism of the earlier cars' handling, a completely new rear suspension
was also installed. This was an independent layout, derived from the 130.
Production of the bodyshells was
by the respective coachbuilders, whilst final assembly of all cars was at the Fiat Rivalta factory outside Turin. Production stopped in December 1972 by
which time a total of 7,600 cars of all versions (2.0 Spider 1133, 2.0 coupe 3629, 2.4 spider 424, 2.4 coupe 2414) had been produced.
The

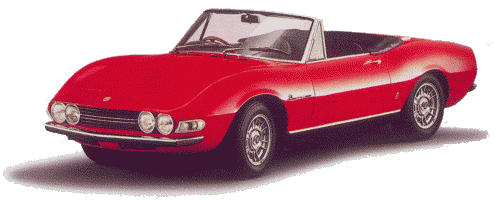

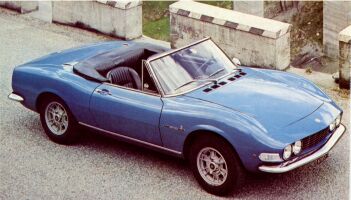

Turin Motorshow of 1966 saw the introduction of the 'Fiat Dino Spider'.
A body designed and built by Pininfarina was powered by an engine based
on a Ferrari competition engine. The venture was born from the neccessity (for F2 competition) for Ferrari to use an engine derived
from a homologated production car of which at least 500 had been built in the last 12 months.
The body was an all steel unitary construction spider. As well as the identical wheelbase, there are several similarities with structural panels of the 124 Spider,
also built by Pininfarina. Internally it was moderately well equipped, with a full set of instruments (speedo, revcounter plus coolant and oil temperature,
oil pressure and fuel level), two front seats accompanied by an 'occasional use' rear seat and an easily operated manual fabric roof. The latter did
not compromose the good size boot.

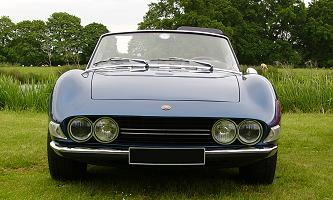

The second series Dinos were introduced at the Turin Motorshow in 1969. Minor
styling changes, most obviously the front grille, were accompanied by more significant mechanical modifications.
Technical Details
| Driveline | longitudinal engine at front with rear wheel drive |
| Engines | 1987cc (86x57mm) quad-cam 65deg V6 with 160bhp @ 7,500rpm
2418cc (92.5x60mm) quad-cam V6 with 180bhp @ 6,600rpm |
| Suspension |
front : Independent double-wishbone with telescopic dampers and coil springs plus anti-roll bar
rear (to 1969) : live axle with twin telescopic dampers and leaf springs rear (from 1969) : independent with telescopic dampers and coil springs plus anti-roll bar wheelbase : spider : 2280mm, coupe : 2550mm front track : 1385mm (series II : 1390mm) rear track : 1350mm (series II : 1381mm) |
| Brakes | front : ventilated discs
rear : ventilated discs handbrake operating on the rear via a cable |
| Gearbox | 5 speed manual
hydraulic clutch clutch plate diameter 230mm |
| Steering | Worm and roller |
| Kerb weight | Spider : 2000 : 1150kg; 2400 : 1270kg
Coupe : 2000 : 1280kg; 2400 : 1380kg |
Performance
| model | max speed | 0-100kph/0-60mph |
| 2000 Coupe | 125mph | 9 sec |
 |
 |
Buying / Selling
Some things to check :
1. Oil pressure, at around mid engine speed
(3000rpm), exhaust smoke on acceleration, excess knocking from engine.
2. Gearbox - sticky/notchy when hot (normal when cold).
3. Straight and true tracking when driving
straight ahead, no knocking when steering turned.
4. Excess noise from diff - check also in reverse.
5. Bodywork - rear wing behind wheelarch,
rear section of front wing, front and rear valances, doors, bootlid, bonnet.
6. Complete interior and damage to non-repairable
surfaces (eg dashboard)
